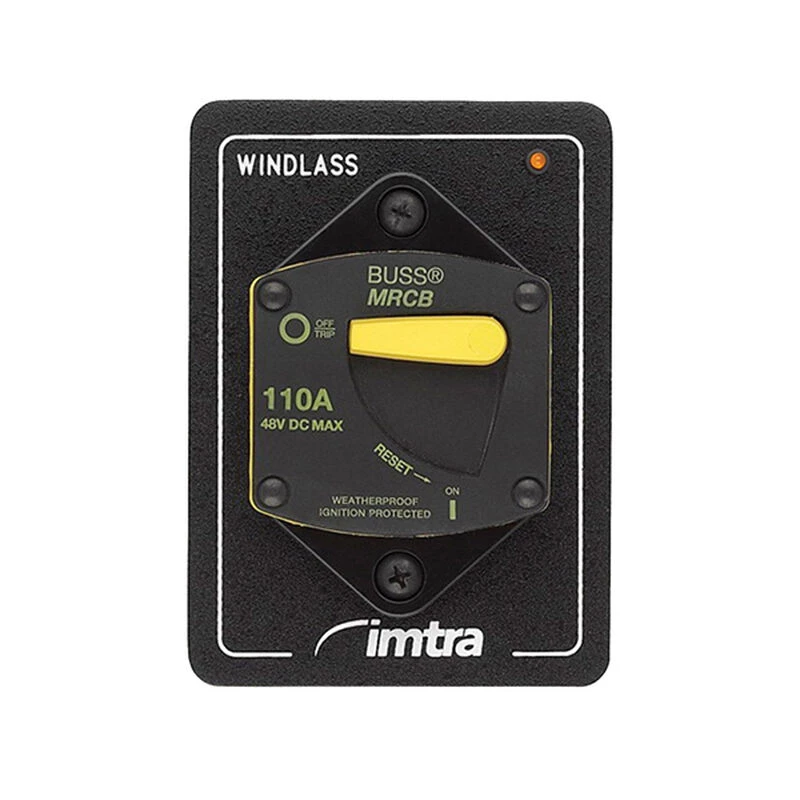

IMTRA CORPORATION Bussmann Type III Class Thermal Circuit Breaker
Original price was: $134.99.$95.99Current price is: $95.99.
- Unbeatable quality, unbeatable prices.
- Discover a world of quality products.
- Your questions, our prompt answers.
- We take quality seriously.
These Bussmann® breakers are available in 50, 70, 110 & 150 Amps sizes & are offered in surface-mount or thru-bulkhead versions. Thru-bulkhead models include a faceplate & install with a simple 2 1/8″ holesaw cutout. All are IP66 for use in wet locations. Connections are 5/16″ to accept large terminal lugs. All accept input voltage up to 48VDC.
- Switchable/manual reset
- Single lever
- Ignition protected
- Weather proof
- Mounting hole clearance for 5mm or 10-32 screws
- Robust 5/16-18 electrical termination studs in corrosion resistive materials
- Large clearance around studs to accept large gauge wire lugs
- All components meet SAE J1171 ignition protection
- Vapor proof
- Thru-bulkhead with panel & 12 Volts LED indicator light
- IP66 IP rating
- Voltage: 12 to 48VDC
- Amperage: 150 Amps
- Dimensions: 3 1/4″ x 4 1/2″
- Hole Saw Cutout: 2 1/8″
- Terminals: 5/16″
- Case Material: Thermoset polyester
| Dimensions | 3 1/4" x 2 1/2" x 4 1/2" |
|---|---|
| Type | Electrical Switchgear |
| Voltage | 12 to 48 Volts DC |
