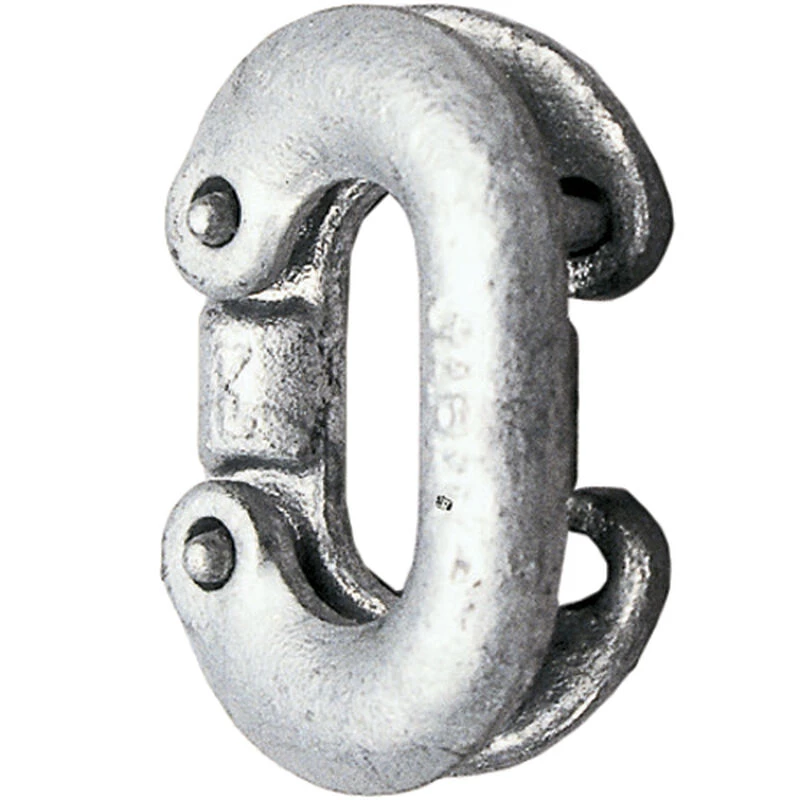

SEAFIT Connecting Links

Add length to an anchor chain.

Add additional length to existing chains with Seafit connecting links. These galvanized, heat-treated, drop forged steel connectors connect two lengths of chain and feature a two sided design that eliminates the need to weld the joining link. Four rivets secure the two sides and make it possible to connect chain using a hammer. When peened, these rivets create a link that is as strong as similar-sized proof coil chain.

Key Features

• Makes connecting chain possible without welding
• Functions like existing links in the chain
• Hot dipped galvanized for corrosion resistance
• Available in three sizes to match commonly used anchor chains
• Not compatible with windlasses

Specifications

• Sizes: 1/4″, 5/16″ and 3/8″
• Maximum Working Load (MWL): 1/4″ – 1,325lb.; 5/16″ – 1,920lb.; 3/8″ – 2,750lb.
